• ECM technology, external controller
• CCC approval, CE approval
• Single or double shafts
• Premium speed control options of 0-10vdc/PWM varible or 5 speeds
• Constant torque or constant speed options
• Soft start , 1.5 times over-load protection
• Over/under Current/Voltage protection, blocking protection
• Compact design and simple replacement
• High efficiency, low operation cost
• Wide applications: VAV, FCU, HRU, AHU, etc
• CW/CCW reversible
• Feedback signal for 0-10vdc, PWM, RS485

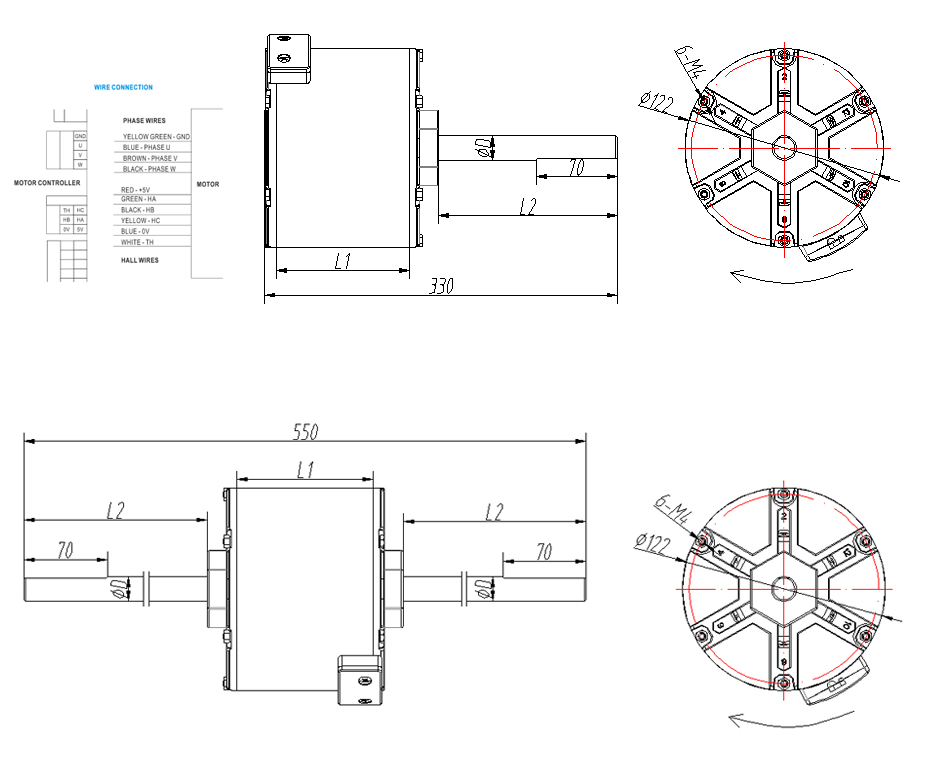

N | Model | Controller Input Voltage | Rated Output (W) | Rated Speed (RPM) | Variable Speed (RPM) | Rated Torque (Nm) | Efficiency | Shaft (s) | L1 (mm) | L2 (mm) | D (mm) |
1 | ECM01120NB112020003 | 220VAC+/-10% | 200 | 1200 | 0-1800 | 1.6 | 80% | single | 80 | 223 | 12.7/15 |
2 | ECM01120NB112025003 | 220VAC+/-10% | 250 | 1200 | 0-1800 | 2.0 | 80% | single | 90 | 215 | 12.7/15 |
3 | ECM01120NB112032003 | 220VAC+/-10% | 320 | 1200 | 0-1800 | 2.5 | 80% | single | 90 | 215 | 12.7/15 |
4 | ECM01120NB112020003/DS | 220VAC+/-10% | 200 | 1200 | 0-1800 | 1.6 | 80% | double | 90 | 216 | 12.7/15 |
5 | ECM01120NB112025003/DS | 220VAC+/-10% | 250 | 1200 | 0-1800 | 2.0 | 80% | double | 90 | 212 | 12.7/15 |
| 6 | ECM01120NB112032003/DS | 220VAC+/-10% | 320 | 1200 | 0-1800 | 2.5 | 80% | double | 90 | 212 | 12.7/15 |
