CIF108041M1AB057_EC Forward Curved Fans

EC Forward Curved Fans

CIF108041M1AB057

Get in touch with us

Let us contact you for more information, availability and pricing.

Tel: +86-186-0688 7970

Contact me

Benefits

Excellent performance in reverse starting

Capable for constant airflow without sensors

Electronic protection of temperature, stall, overcurrent, overvoltage, loss-of-sync, and phase-loss protection etc.

Typical Application

HVAC applications

Features

◎ EC external rotor motor with integrated controller for compact structure

◎ Speed control options of 0-10vdc, PWM and RS485 for wide range

◎ Soft start for stable running and low noise

◎ High efficiency particularly for low speed operation

◎ Intelligent control for custom settings according to application

specifications

Model	Input Voltage	Input Power (W)	Rated Speed (RPM)	Air Pressure (Pa)	Flow(m³/h)	Noise (dB)	Impeller Size
CIF108041M1AB057	230VDC	57	3300	360	250	60	φ108x41mm
CIF120042M1AB057	230VDC	57	2750	600	250	55	φ120x42mm
CIF133062M1AB057	230VDC	57	2450	650	260	55	φ133x62mm
CIF140042M2BB095	230VDC	95	2450	750	575	60	φ140x42mm
CIF146188M2BB095	230VDC	95	1400	550	900	60	φ146x188mm
CIF160062M3AB125	230VDC	125	2550	950	650	60	φ160x62mm
CIF160204M3CB125	230VDC	125	1200	850	1300	60	φ160x204mm
CIF250102M5BB230	230VDC	230	1400	2370	410	65	φ250x102mm
CIF315127M7BB580	230VDC	580	1100	480	4500	70	φ315x127mm
CIF355141M8BB830	230VDC	580	1350	900	5660	75	φ355x141mm
CIF400164M9BB1170	230VDC	1170	1400	1030	6700	80	φ400x164mm
CIF355143M10BB1700	230VDC	1700	1180	960	4000	80	φ355x143mm

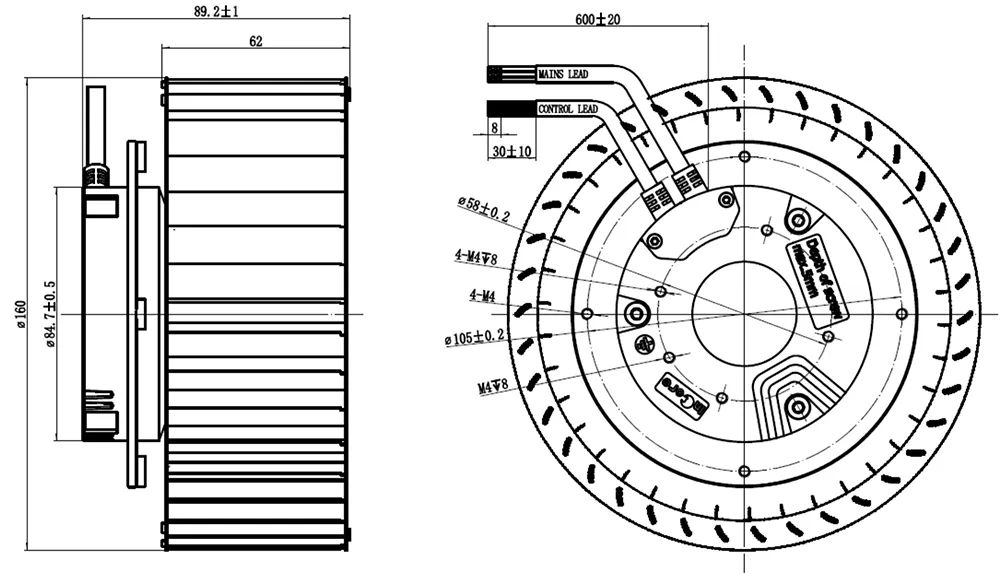

Dimensions
