EMC suppressor for safety and better reliability
Low noise and vibration
Ventilation products and industrial/agricultural equipments
◎ Permanent magnet brushless synchronous motor, IEC 5+ efficiency. integrated controller for compact size and light weight.
◎ Multiple speeds/0-10V DC/PWM variable speed
◎ Constant speed and constant torque mode, CW/CCW
◎ Overheat and overload protection and EMC suppressor for safety and better reliability
◎ FOC vector control and soft-start design for low noise and vibration
◎ RS485 interface available for communication with upper level control; optional user programmer for custom parameter setting.

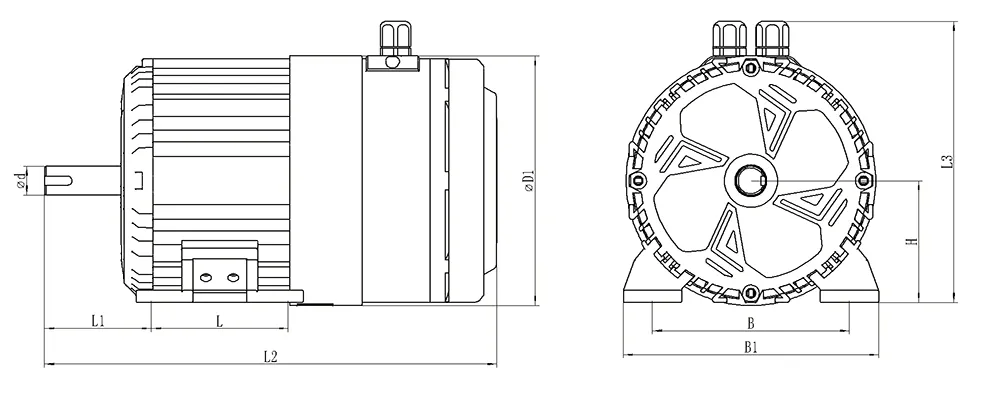

◎ IEC B3 and B5 mounting structure for easy replacement to traditional three-phase asynchronous motors
◎ IP54 with aviation-grade aluminum alloy housing, highquality ball bearings for long service life
| Model | Input Voltage | Frequency(Hz) | Rated Output(W) | Rated Speed(RPM) | Rated Range(RPM) | Efficiency |
|---|---|---|---|---|---|---|
| ECI80-0.55A1-B3（5） | AC220-240 | 50/60 | 550 | 1500 | 200-1800 | 88.1% |
| ECI80-0.55B1-B3（5） | 3000 | 400-3600 | 88.1% | |||
| ECI80-0.75A1-B3（5） | AC220-240 | 50/60 | 750 | 1500 | 200-1800 | 90.5% |
| ECI80-0.75B1-B3（5） | 3000 | 400-3600 | 88.7% | |||
| ECI80-1.1A1-B3（5） | AC220-240 | 50/60 | 1100 | 1500 | 200-1800 | 90.5% |
| ECI80-1.1B1-B3（5） | 3000 | 400-3600 | 88.1% | |||
| ECI80-1.5A1-B3（5） | AC220-240 | 50/60 | 1500 | 1500 | 200-1800 | 90.4% |
| ECI80-1.5B1-B3（5） | 3000 | 400-3600 | 89.8% | |||
| ECI80-0.55A1P-B3（5） | AC220-240 | 50/60 | 550 | 1500 | 200-1800 | 88.1% |
| ECI80-0.55B1P-B3（5） | 3000 | 400-3600 | 88.1% | |||
| ECI80-0.75A1P-B3（5） | AC220-240 | 50/60 | 750 | 1500 | 200-1800 | 90.5% |
| ECI80-0.75B1P-B3（5） | 3000 | 400-3600 | 88.7% | |||
| ECI80-1.1A1P-B3（5） | AC220-240 | 50/60 | 1100 | 1500 | 200-1800 | 90.5% |
| ECI80-1.1B1P-B3（5） | 3000 | 400-3600 | 88.1% | |||
| ECI80-1.5A1P-B3（5） | AC220-240 | 50/60 | 1500 | 1500 | 200-1800 | 90.4% |
| ECI80-1.5B1P-B3（5） | 3000 | 400-3600 | 89.8% |
