High efficiency, low operation cost
Reliable and long-lasting operation
Fan coil unit, air curtains
Heat recovery unit
◎ BLDC motor with external controller

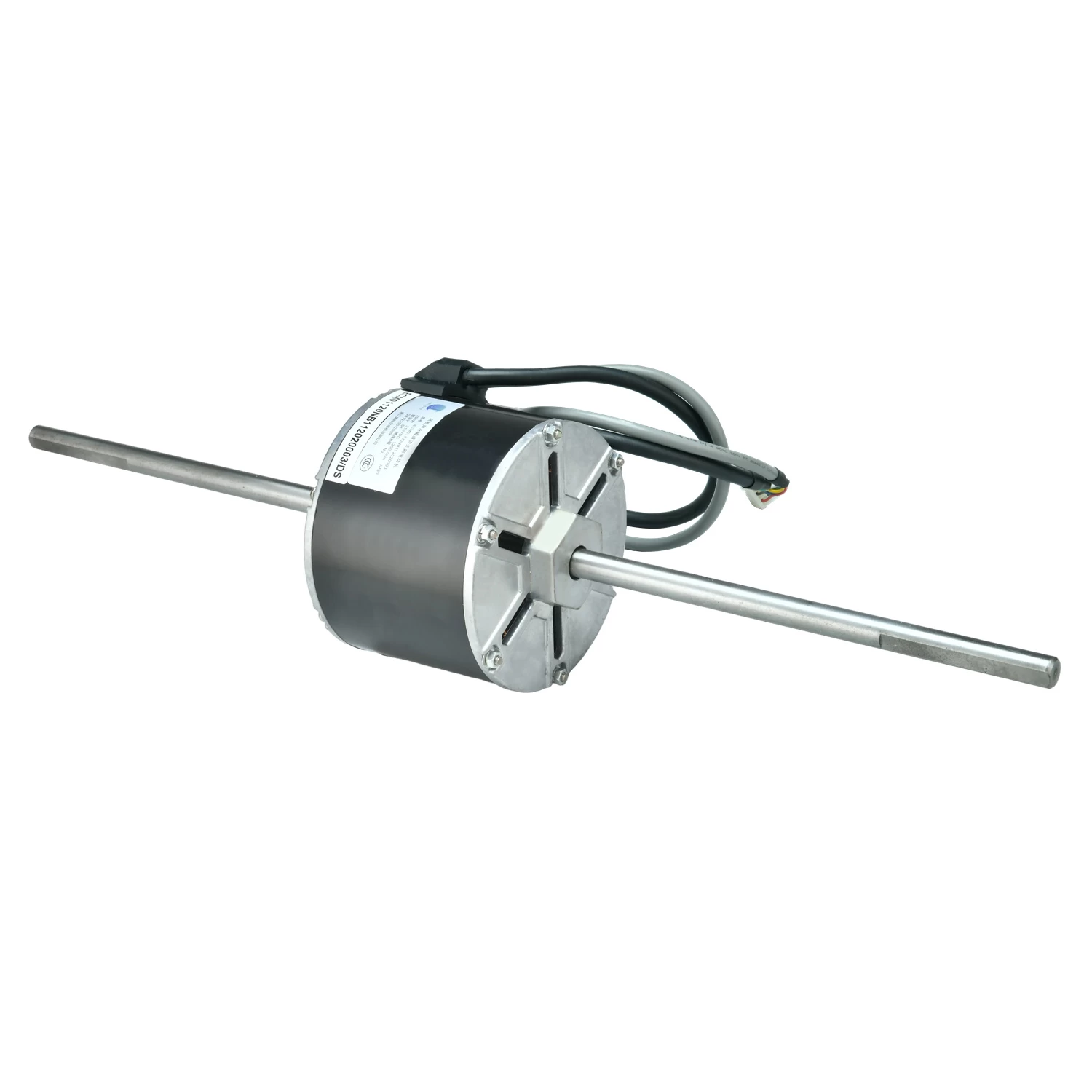

◎ Single or double shaft available
◎ Three speeds/0-10vdc/PWM variable speed
◎ 24VDC/230VAC input voltage available
◎ Constant speed or constant torque mode available
◎ Soft start, electronic protection of over-current, over voltage, over-load, inverse power connection, blocking protection.
◎ Optional feature: Tacho, RS485 communication, reversible rotation direction.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Speed Range(RPM) | Rated Torque(Nm) | Efficiency |
|---|---|---|---|---|---|---|

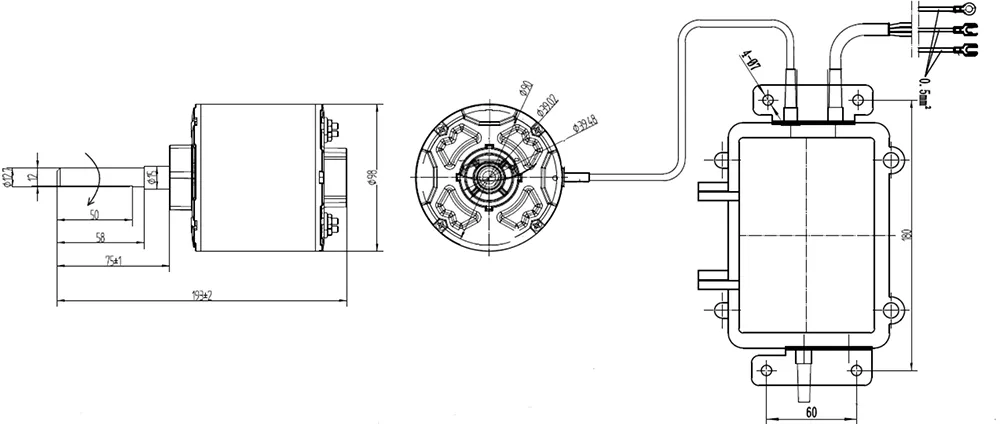

| ECM01098NB009009002 | 230 VAC | 90 | 900 | 0-850 | 0.95 | 75% |

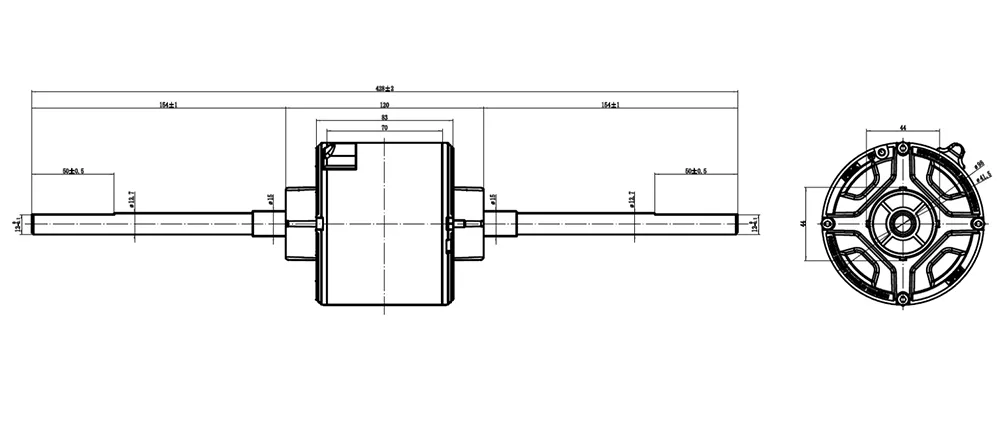

| ECM01098NB012018002 | 230 VAC | 180 | 1200 | 0-850 | 1.4 | 78% |
