High efficiency, low operation cost
Standard structure for easy replacement
Air handling unit, commercial/industrial fans
Agriculture and livestock ventilation

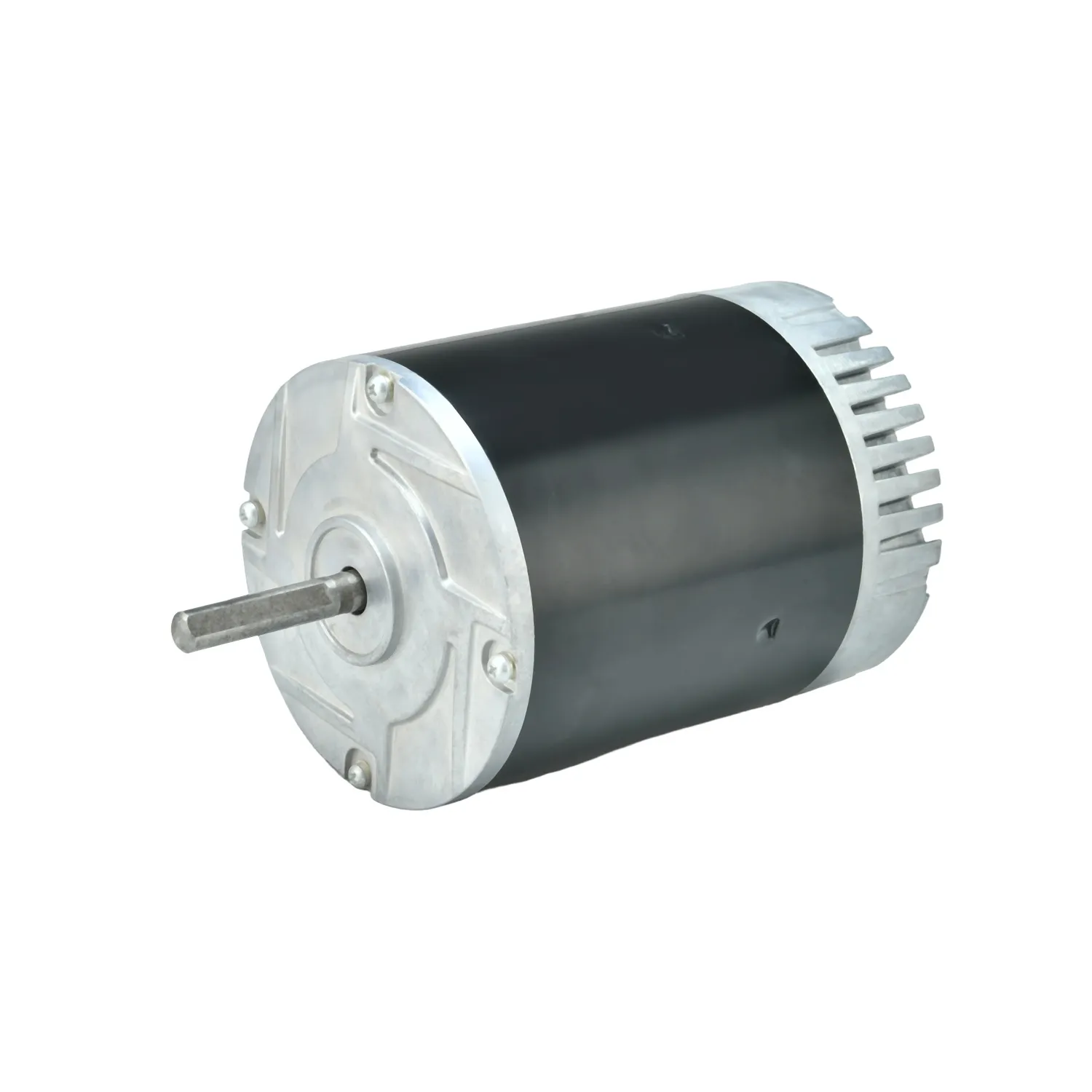

◎ ECM motor with integrated controller
◎ Five speeds/0-10vdc/PWM variable speed
◎ Constant speed or constant torque mode available
◎ CW/CCW
◎ Output signal options: 0-10vdc, PWM, RS485
◎ PFC version of controller available
◎ Soft start, electronic protection of over-current, over voltage, over-load, inverse power connection, blocking protection.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Speed Range(RPM) | Rated Torque(Nm) | Efficiency |
|---|---|---|---|---|---|---|

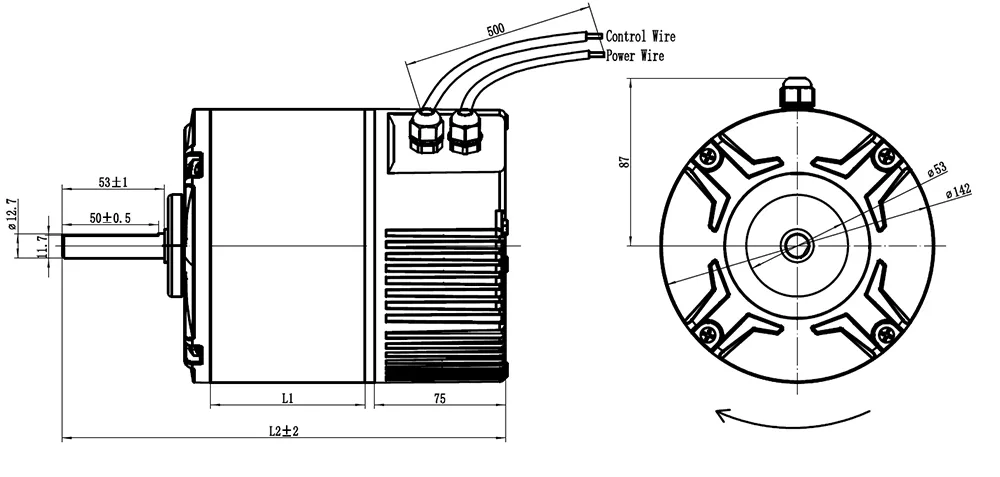

| ECM01142NA114020004IP | 90-265 VAC | 200 | 1400 | 200-1500 | 1.4 | 80% |
| ECM01142NA114025004IP | 90-265 VAC | 250 | 1400 | 200-1500 | 1.7 | 80% |
| ECM01142NA114037004IP | 90-265 VAC | 370 | 1400 | 200-1500 | 2.5 | 82% |
| ECM01142NA114056004IP | 185-265 VAC | 560 | 1400 | 200-1500 | 3.8 | 82% |
| ECM01142NA114073504IP | 185-265 VAC | 735 | 1400 | 200-1500 | 5.0 | 84% |

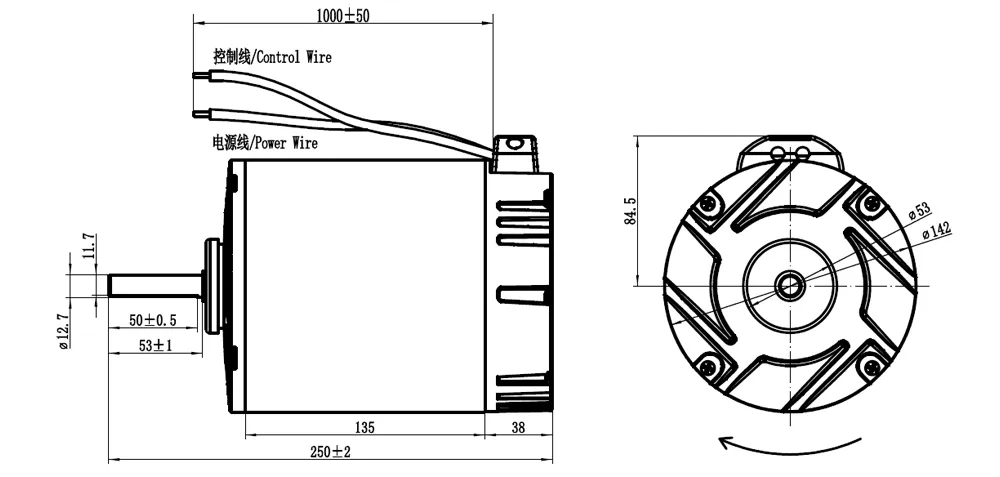

| ECM01142NA109110004IP | 230 VAC | 1100 | 900 | 200-1500 | 11.7 | 85% |
| ECM01142NA114150004IP | 230 VAC | 1500 | 1400 | 200-1500 | 10.2 | 85% |
